| موك: | 1000kgs |
| سعر: | basing on size and quantity |
| التعبئة والتغليف القياسية: | البليت |
| فترة التسليم: | 30 يوم عمل |
| طريقة الدفع: | تي/تي |
| القدرة على التوريد: | 200000kgs في الشهر |

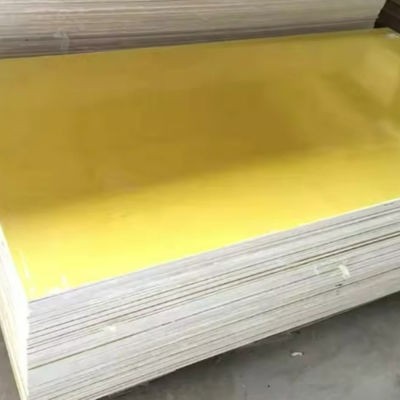

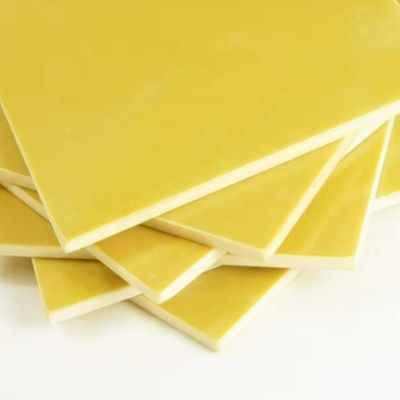

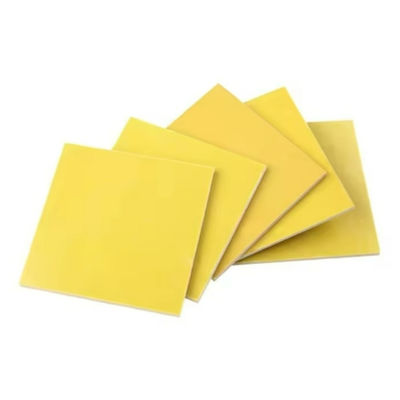

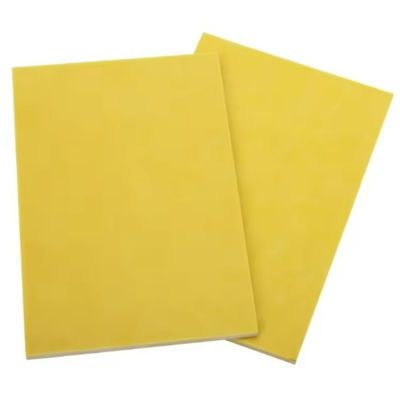

3240: A High-Performance Electrical Insulation Laminate
The Phenolic Epoxy Glass Fiber Laminate 3240 provides outstanding electrical and mechanical performance. This alkali-free reinforced laminate, with its Class B thermal stability, is the ideal choice for manufacturing critical insulation components and structural parts. It performs consistently even in challenging operating environments, including high humidity and immersion in transformer oil.
| Attribute | Value |
| Color | Yellow |
| Shape | Board |
| Surface | Smooth/no Significant Defect |
| Density | ≥1.8g/cm3 |
| Water Absorption | ≤0.5% |
| Tensile strength (MD) | ≥200MPa |
| Compressive strength | ≥350MPa |
| Vertical electric strength (at 90℃±2℃ in oil), 1mm in thickness | ≥14.2kV/mm |
| Parallel breakdown voltage(at 90℃±2℃ in oil) | ≥35kV |
| Relative permittivity(50Hz) | ≤5.5 |
| Insulation Resistance (Normal) | ≥5.0×10^12 Ω |
| Temp. Index | 120℃ |
| Flammability | HB |
