| موك: | 1000kgs |
| سعر: | basing on size and quantity |
| التعبئة والتغليف القياسية: | البليت |
| فترة التسليم: | 30 يوم عمل |
| طريقة الدفع: | تي/تي |
| القدرة على التوريد: | 200000kgs في الشهر |

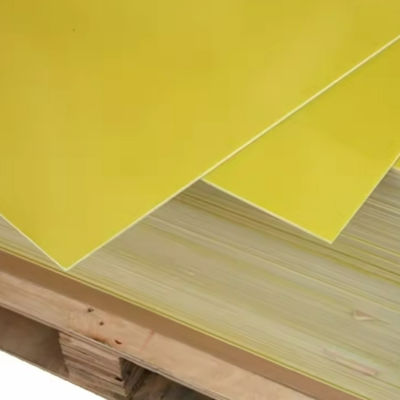

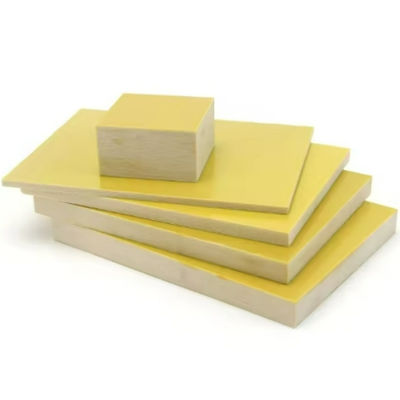

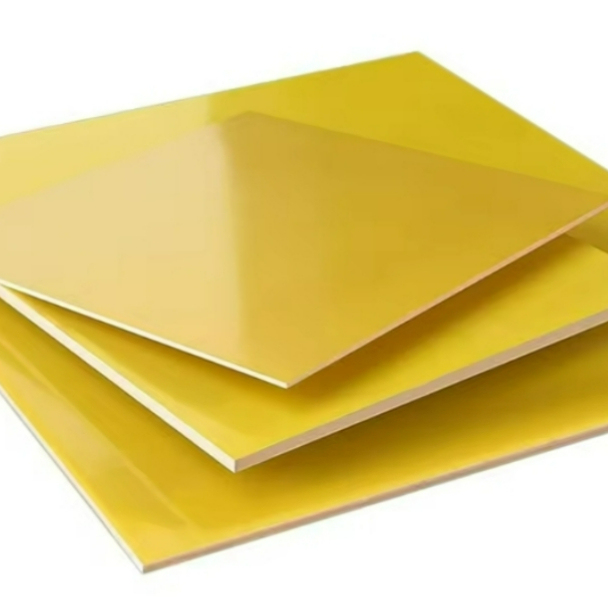

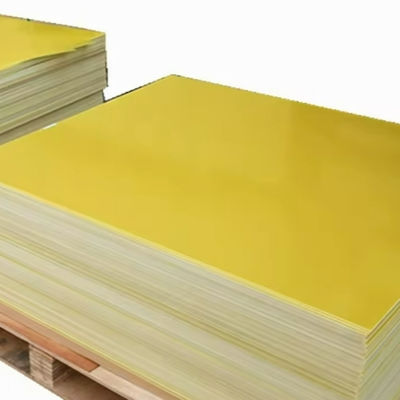

The Phenolic Epoxy class fiber laminate 3240 is an electrical purposed alkali-free reinforced laminate bonded with phenolic epoxy resin, specifically designed for electrical applications. With a Class B thermal stability rating, it offers excellent mechanical and dielectric properties. This material is widely used in electrical and electronic fields for fabricating insulating components and structural parts in equipment. It is also suitable for use in demanding environments, including high humidity and transformer oil.
| Attribute | Value |
| Color | Yellow |
| Shape | Board |
| Surface | Smooth/no Significant Defect |
| Density | ≥1.8g/cm3 |
| Water Absorption | ≤0.5% |
| Tensile strength (MD) | ≥200MPa |
| Compressive strength | ≥350MPa |
| Vertical electric strength (at 90℃±2℃ in oil), 1mm in thickness | ≥14.2kV/mm |
| Parallel breakdown voltage(at 90℃±2℃ in oil) | ≥35kV |
| Relative permittivity(50Hz) | ≤5.5 |
| Insulation Resistance (Normal) | ≥5.0×10^12 Ω |
| Temp. Index | 120℃ |
| Flammability | HB |
فيديو
فيديو
فيديو
|
|
| موك: | 1000kgs |
| سعر: | basing on size and quantity |
| التعبئة والتغليف القياسية: | البليت |
| فترة التسليم: | 30 يوم عمل |
| طريقة الدفع: | تي/تي |
| القدرة على التوريد: | 200000kgs في الشهر |
The Phenolic Epoxy class fiber laminate 3240 is an electrical purposed alkali-free reinforced laminate bonded with phenolic epoxy resin, specifically designed for electrical applications. With a Class B thermal stability rating, it offers excellent mechanical and dielectric properties. This material is widely used in electrical and electronic fields for fabricating insulating components and structural parts in equipment. It is also suitable for use in demanding environments, including high humidity and transformer oil.
| Attribute | Value |
| Color | Yellow |
| Shape | Board |
| Surface | Smooth/no Significant Defect |
| Density | ≥1.8g/cm3 |
| Water Absorption | ≤0.5% |
| Tensile strength (MD) | ≥200MPa |
| Compressive strength | ≥350MPa |
| Vertical electric strength (at 90℃±2℃ in oil), 1mm in thickness | ≥14.2kV/mm |
| Parallel breakdown voltage(at 90℃±2℃ in oil) | ≥35kV |
| Relative permittivity(50Hz) | ≤5.5 |
| Insulation Resistance (Normal) | ≥5.0×10^12 Ω |
| Temp. Index | 120℃ |
| Flammability | HB |
